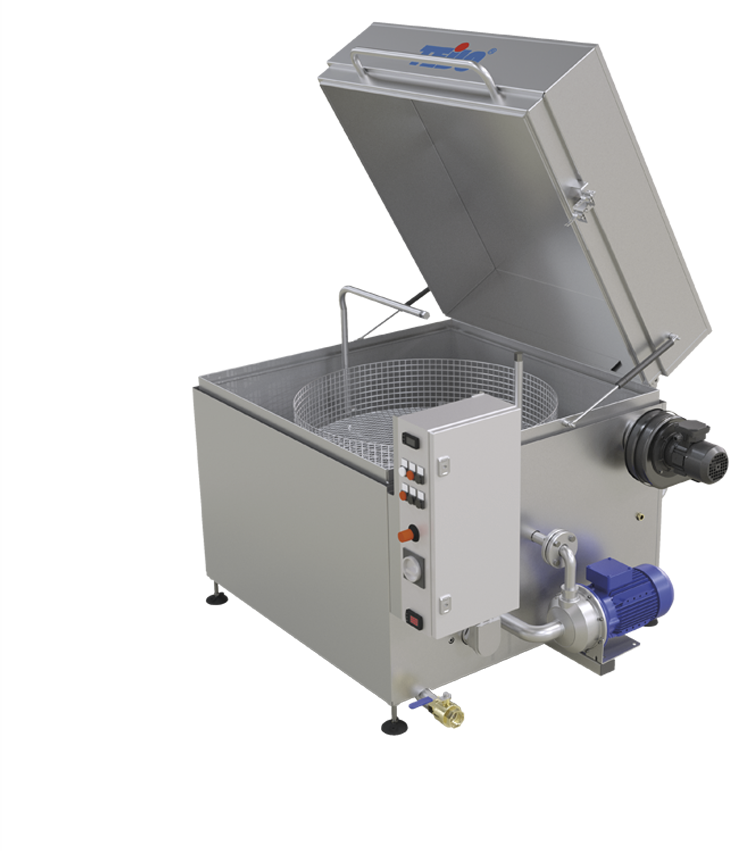

Features and benefits

The parts to be cleaned are loaded into the cleaning chamber from the top by means of a loading basket, loading grid or loading table.

This type of cleaning machine is effective and suitable for cleaning small parts.

The operator controls the cleaning process using a timer, thermostat and dedicated switches (e.g., heating, oil skimming) located on the electrical control panel.

The machine is constructed from stainless steel for durability and long-lasting performance.

Selecting a model

The correct cleaning machine model is determined by the dimensions of the component to be cleaned, taking into account its height and diameter or height and cross-section.

The model number indicates the diameter of the spray pipe’s rotation circle (e.g., TL-900SS = Ø 900 mm), which determines the maximum cross-section of the component that can be cleaned.

The maximum component height is 430 mm.

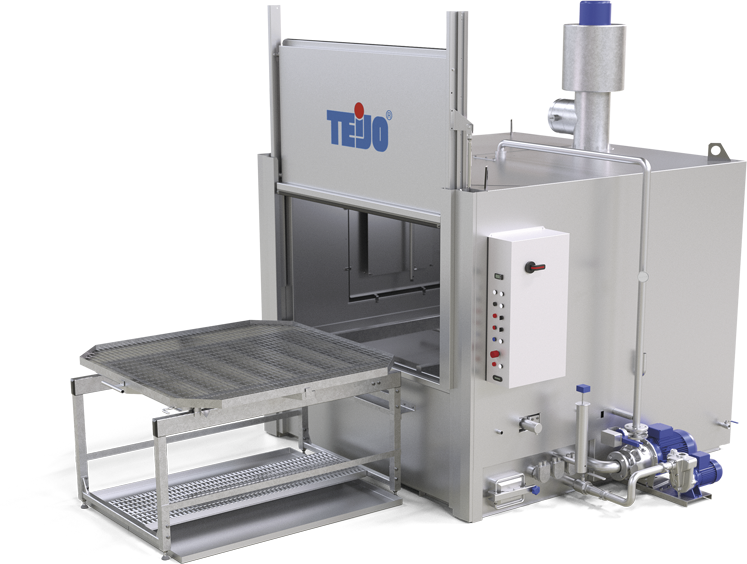

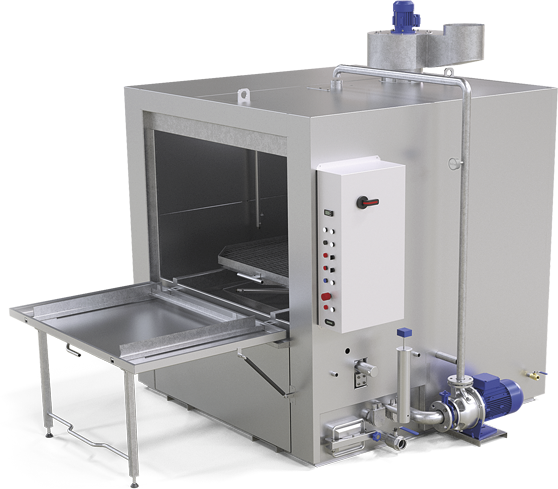

Features and benefits

This machine performs a single stage cleaning process, making it a cost-effective solution for components requiring surface cleaning only. However, a range of accessory options are available to increase cleaning effieciency, optimizing labor, energy and water consumption while ensuring compliance with strict environmental regulations.

Parts are loaded from the front into the machine using a load carriage with a capacity of up to 2,500 kg. Depending on the model, the machine can be equipped with either a hinged door (KD, limited product range) or a pneumatic lift door (PD). The cleaning cabinet is available in heights of 550 mm, 800 mm or 1200 mm.

The operator controls the cleaning process via a timer, thermostat and dedicated switches (e.g., heating, oil skimming) located on the electrical control panel.
The machine is constructed from stainless steel for durability and long-lasting performance.

Selecting a model

The correct cleaning machine model is determined by the dimensions of the component to be cleaned, taking into account its height and diameter or height and cross-
section.

The model number indicates the diameter of the spray pipe’s rotation circle (e.g., C-1600SS = 1600 mm), which determines the maximum cross-section of the component that can be cleaned.

The maximum component height is either

• 550 mm (C-800SS-KD/PD)
• 800 mm (e.g. C-1000SS-KD/PD)
• 1200 mm (e.g. C-1000HSS-KD/PD)

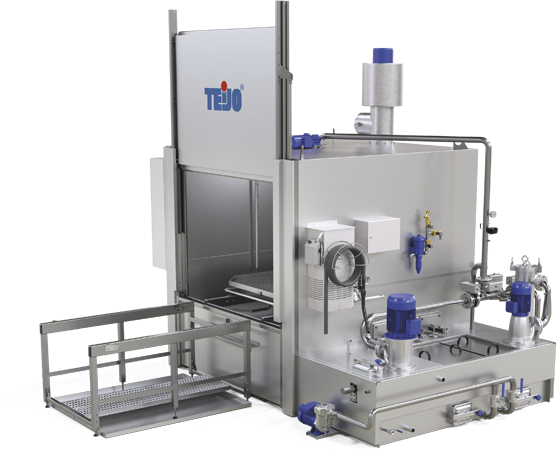

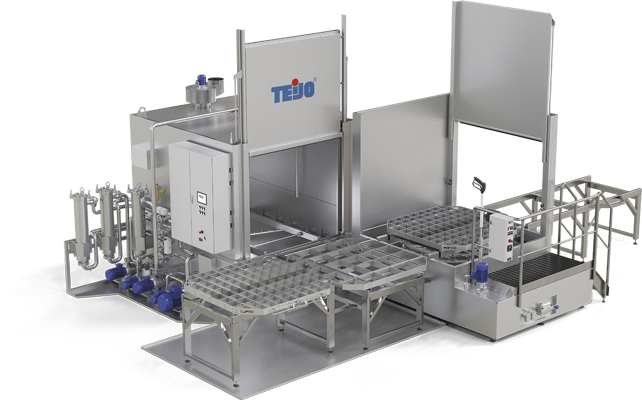

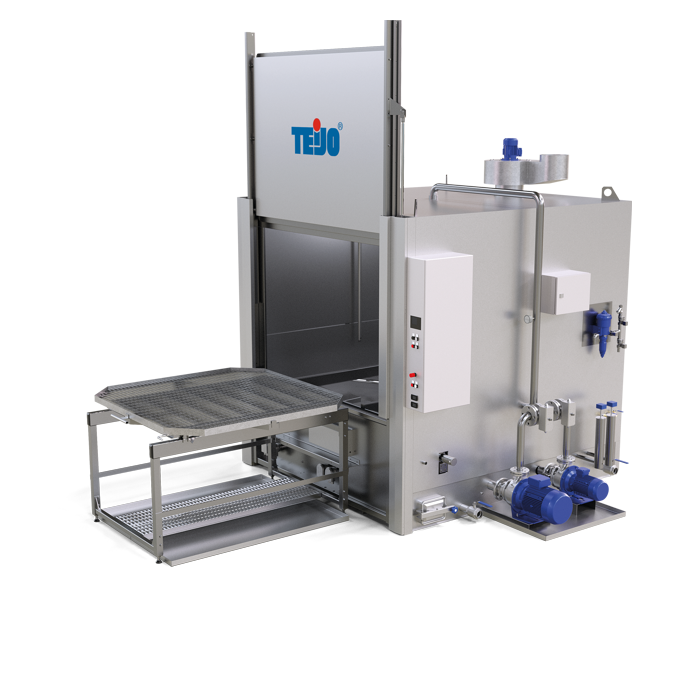

Features and benefits

The EVO Series provides a cost-effective solution for applications requiring a multi-stage cleaning process. A compact version of the multi-stage machines with 2 liquid tanks below the cleaning chamber, the EVO is perfect for space-constrained environments, while offering the same high performance cleaning capabilities as the Multi-Stage model.

Various accessory options increase efficiency, optimizing labor, energy and water consumption while ensuring compliance with strict environmental regulations.

Parts are loaded from the front using a load carriage with a capacity of up to 2,000 kg. The standard configuration includes a pneumatic lift door (PD), with the option to add a second if required. The cabinet is available in heights of 800 mm or 1200 mm.

The operator controls the process via a programmable logic controller (PLC) with a user-friendly display. The EVO Series is constructed from stainless steel for durability and long-lasting performance.

Selecting a model

The correct cleaning machine model is determined by the dimensions of the component to be cleaned, taking into account its height and diameter or height and cross-section. The model number indicates the diameter of the spray pipe’s rotation circle (e.g. C-1600SS = Ø 1600 mm), which determines the maximum cross-section of the component that can be cleaned.

The maximum component height is either:

• 800 mm (e.g., C-1600-22SS-PD)
• 1200 mm (e.g., C-1600-22HSS-PD)

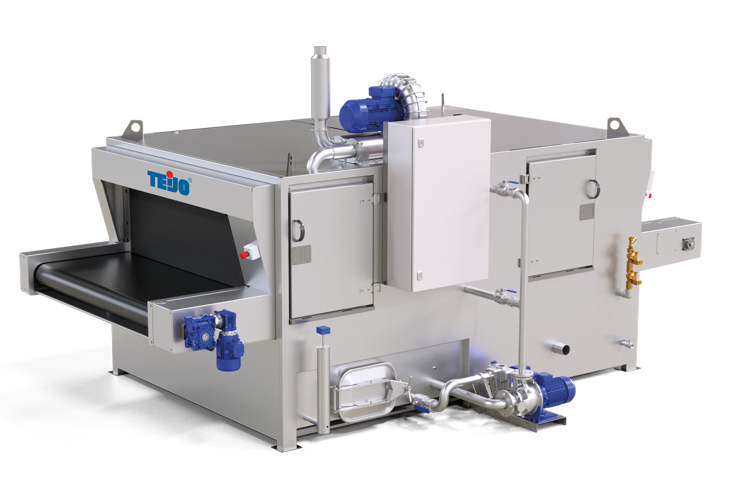

The KT Series tunnel washers are designed for high-capacity applications and feature a conveyor system that efficiently transports components through the cleaning chamber.

Designed for seamless integration into production lines, these machines are typically configured with one or more cleaning stages. Additional features, such as a drying stage, can be incorporated to meet specific requirements.

Each tunnel washer is fully customizable to meet precise customer specifications, ensuring optimum performance in a wide range of industrial cleaning applications. The KT Series is constructed from stainless steel for durability and long-lasting performance.

The KT Series can be controlled

• via a Programmable Logic Controller (PLC) with a user-friendly display.
• via a timer, thermostat and dedicated switches
  (e.g., heating, oil skimming) located on the electrical panel.

Whether you need a compact unit or a large-scale system, we can design and manufacture a customized cleaning machine to match your specific size, capacity and functionality requirements. We have supplied washing machines to Flexible Manufacturing Systems (FMS), as well as to fully robotized production cells.

Whatever your cleaning requirements - strict standards, high-throughput environments or industry-specific challenges - we design and build effective solutions.

With Teijo, you’re not just getting a machine - you’re getting a solution that works for you now and in the future.
